Payloader PRO

Built to get more work done with less effort, fewer trips and fewer vehicles

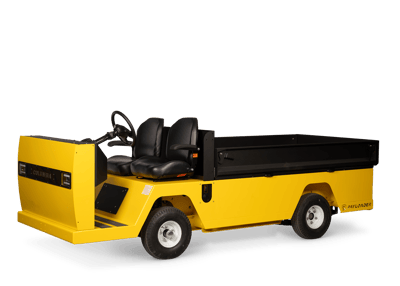

The gap between a cart and a truck is where real work happens. That’s where crews lose time, where strain slows productivity and where “good enough” stops working. The Columbia Payloader Pro 2XL and 4X, available with standard- or heavy-duty configurations, takes over that space—helping crews move people, carry cargo and tow loads with one smarter, more capable platform.

Features

  • Navigate tighter aisles

  • 128-inch turning radius
  • Low load deck
  • Heavy-duty braking control
  • Dash displays & diagnostics
  • AC drive with integrated braking
  • 5-year limited warranty

Popular options

  • Heater/defroster

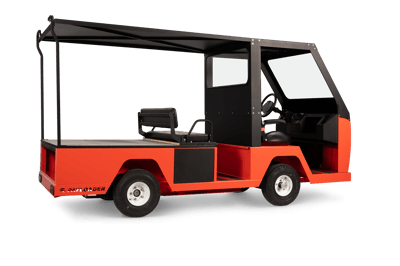

  • Cab with doors
  • Latching folding side panels
  • Overhead ladder rack
  • Cargo van enclosures
  • Tire/wheel combinations
  • Foldaway 2nd Seat
  • Strobe light
  • Power assist steering
PayloaderPRO-blog-link

Dimensions

PayloaderPRO-drawing

Step Height: 14.5 in.
Load Bed Height: 27.5 in.
Ground Clearance: 4.5 in.

Performance

Max Speed Forward: 13 MPH
Turning Radius: 128 in.
Range: Up to 30 miles

Weight and Capacity

  Standard Duty  Heavy Duty
Vehicle Weight:

2 pass. 1,865 lbs. | 4 pass. 1,960 lbs.

2 pass. 1,915 lbs. | 4 pass. 2,010 lbs.

Rated Capacity: 2,000 lbs. 3,000 lbs.
Towing Capacity: 6,500 lbs. 10,000 lbs.

Power Train

  Standard Duty Heavy Duty
Motor:

5kW AC Induction motor w/ parking brake

8kW AC Induction motor w/ parking brake

Batteries:

Eight 6-volt, heavy-duty, 232 amp hour deep cycle (Lithium iron optional)

Charger:

Built-in, micro-processor control, fully sealed, anti-drive away interlock, 110-240 VAC, 50 / 60 HZ

Controller Type:

Programmable, solid state, reduced speed reverse with diagnostic LED & calibrator interface

Controller Rating: 450-amp programmable controller
Motor Braking Mode:

Regenerative with top speed limiting

Directional Control:

Dash-mounted safety directional rocker switch

Drive Unit/Differential:

Direct drive, automotive differential, 12.62:1 drive ratio

Direct drive, automotive differential, 16.67:1 drive ratio

Body

Passenger Capacity: 2 with up to 4 (optional second-row seating)
Seating:

Front row: bucket seats with armrests, driver side adjustable; 2nd row: bench seats

Body:

Welded heavy-duty; 12-gauge structural steel smooth plate body; steel powder-coated bulkhead

Lighting:

Dual recessed LED headlights; LED tail and brake lights; reverse lights

Accessories:

Horn; multifunctional display with digital speedometer, battery discharge indicator & hour meter; DC/DC converter; high/low speed switch; cup holders; passenger side storage pocket; USB and 12v accessory power; reverse warning alarm; driver seat power interlock switch



Chassis

  Standard Duty Heavy Duty
Frame:

Unitized, powder coated smooth plate steel, 1/4” thick structure

Steering:

Tilt adjust automotive steering wheel to gearbox

Brakes:

Rear-wheel hydraulic drum brakes,
automatic parking brake

4-wheel hydraulic, front discs, rear drums,
automatic parking brake

Suspension:

Front suspension coilover shocks; rear suspension leaf springs

Tires:

5.70” x 8”, pneumatic, 8-ply rating, load range D

Contact us to learn more Contact

Contact our team to learn more about the Payloader PRO.

Disclaimer

Features, options, specifications, color availability and model designation are subject to change without notice. Some vehicles are pictured with options that may be available at extra cost or may not be available on some models. Ask your dealer about the availability of options and verify that the vehicle you order includes the equipment you require.

  1. Range will vary depending upon load, temperature, terrain, driving style and battery pack selected.
  2. Rated capacity includes personnel, cargo, options and accessories.
